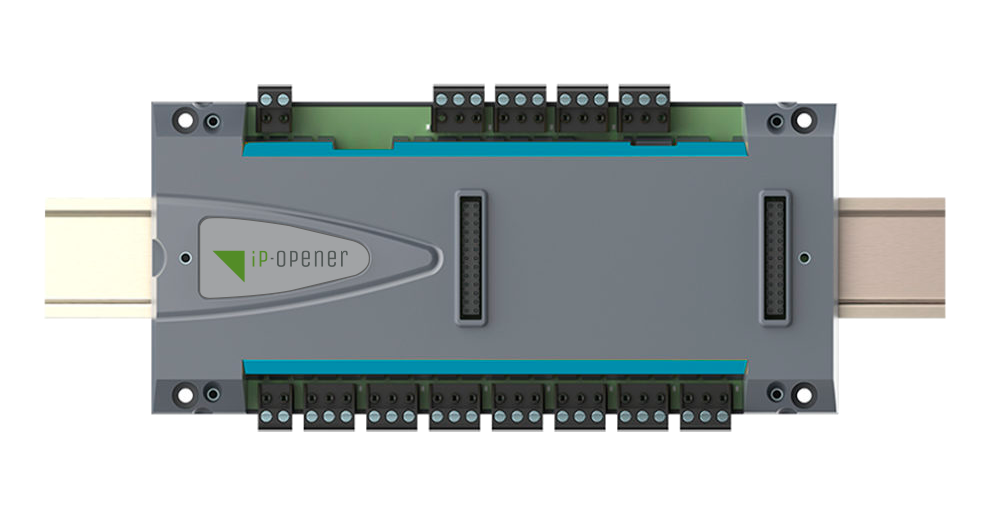

- Module specially designed for the management of lifts.
- 12Vdc power supply.
- 10 output expander module.
- Connection to controller via RS485.
- 48Vdc/1A or 24Vdc/5A output relays.
- DIN rail installation.
- The connection of the module to iP Opener enables the creation of a RS485 bus with up to 220 relay outputs (by using 10 GM-IPOP-10S-RS485 modules + 10 GM-IPOP-EXP12S expanders).
Dimensions: 200(W) x 90(H) x 34(D) mm
